Product Description

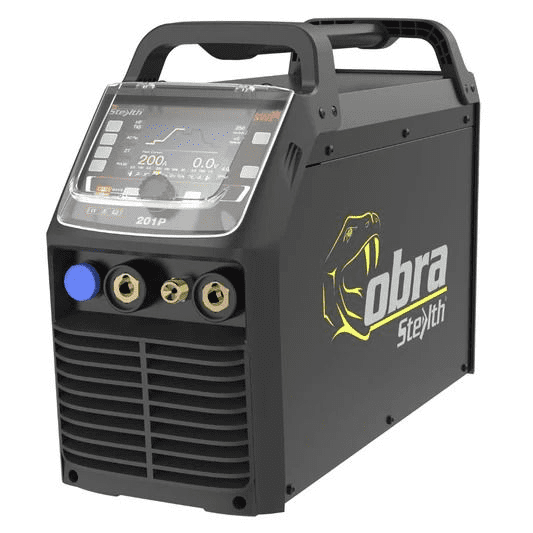

The Cobra By Stealth TIG 201P AC/DC LCD MV TIG welding machine provides an extensive welding current range:110V TIG AC from 5-160A, DC from 3-160A, 110V MMA from 10-130A, 230V AC TIG from 5-200A, 230V DC TIG from 3-200A, and 230V MMA from 10-200A, offering exceptional versatility for a wide range of welding tasks.

Experience a versatile and dependable welding machine with the Cobra by Stealth 201P AC/DC LCD MV TIG Welding Machine. It offers a wide range of input compatibility, with multi voltage capabilities of 90-275 and a power factor correction of 0.99. Advanced features such as AC/DC technology and adjustable pulse frequency make this machine stand out, while its 60% heavy duty cycle ensures efficient and consistent performance. User-friendly with easy arc striking and 3A welding at extra low current, it is also generator friendly. Plus, enjoy added peace of mind with its 5 year warranty.

The Cobra by Stealth TIG 201P LCD boasts an IP21S protection class, offering reliable performance with protection against vertical water drops and dust, ensuring durability in various environments.

This machine comes complete with Accessory Kit No. 9827H

OPERATORS MANUAL

Features

  • Multi voltage

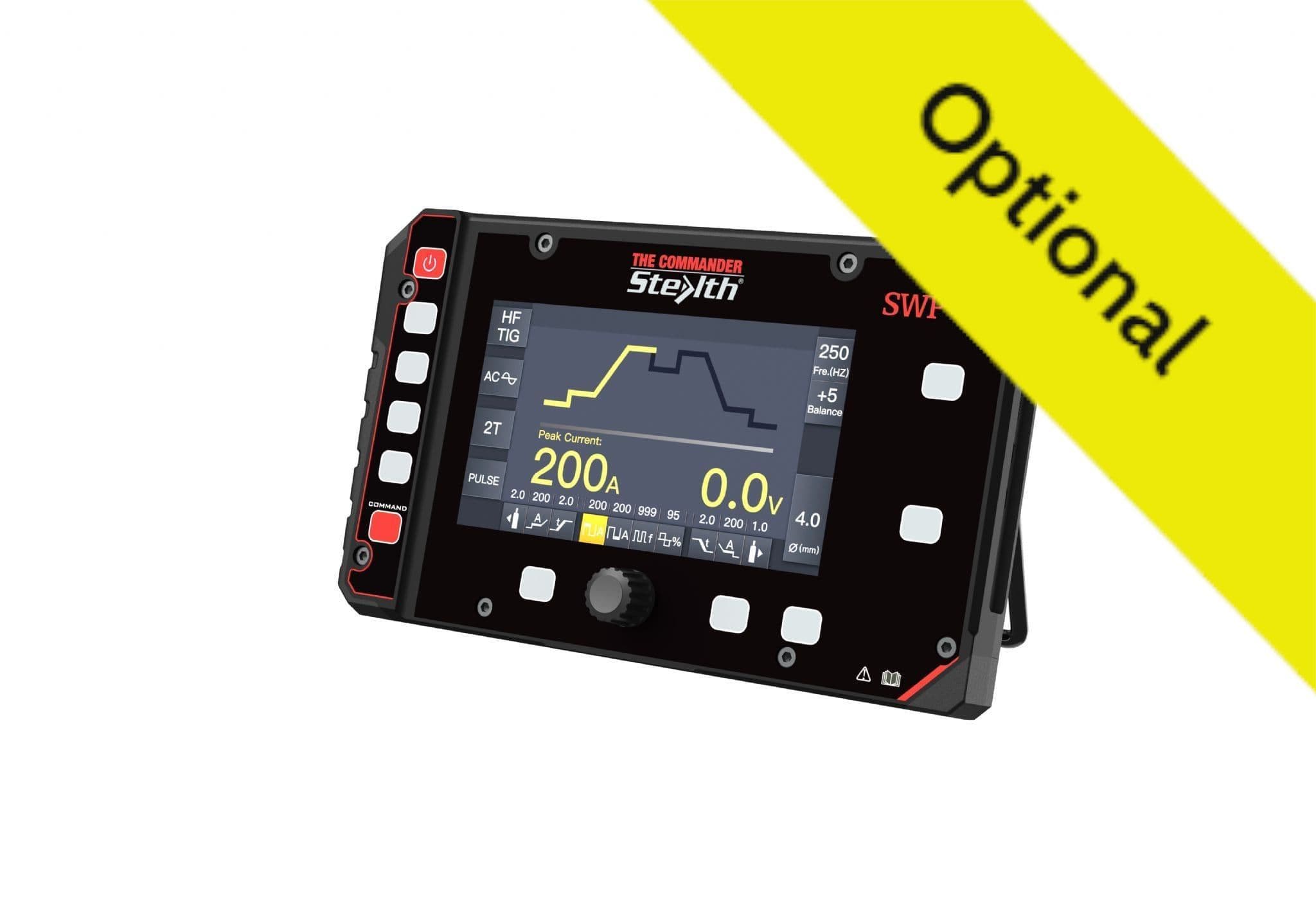

  • Full digital control panel
  • 0.5 - 200 pulse frequency
  • Multi AC wave form choices
  • Welds all forms of steels - including aluminium
  • Power factor protection
  • Job memory
  • Generator friendly
  • High performance on ultrathin surfaces
  • Great value for an industrial quality machine
Input supply voltage 90-275 Power frequency (Hz) 50/60
Input voltage (V)

1-110

1-230

Effective current (A)

110V TIG AC:24.3 | 110V TIG DC :25.6

110V MMA AC:28.4| 110V MMA DC:30.2

230V TIG AC:15.6 | 230V TIG DC:16.1

230V MMA AC:17 | 230V MMA DC: 17.9

Rated input current

110V TIG AC:31.4 | 110V TIG DC:33

110V MMA AC:36.6

110V MMA DC: 39

230V TIG AC: 20.1

230V TIG DC: 20.8

230V MMA AC: 28.7

230V MMA DC: 30.2

Rated input power (KW)

110V TIG AC:3.5

110V TIG DC:3.6

110V MMA AC:4

110V MMA DC:4.3

230V TIG AC: 4.6

230V TIG DC: 4.8

230V MMA AC: 6.6

230V MMA DC: 6.9

Duty cycle 110V TIG (A) (40°C to 10 min)

60% @ 160A

100% @ 125A

Duty cycle 110V MMA (A) (40° to 10 min)

30% @ 130A

100% @ 100A

Duty cycle 230V TIG (A) (40°C to 10 min)

40% @ 200A

100% @ 155A

Duty cycle 230V MMA (A) (40°C to 10 min)

35% @ 200A

60% @ 155A

100% @ 120A

Welding current range (A)

110V TIG AC:5-160| 110V TIG DC:3-160

110V MMA:10-130

230V TIG AC:5-200|

230V TIG DC:3-200

230V MMA:10-200

No load voltage

110V TIG:74

110V MMA:11.5(VRD)

230V TIG:73

230V MMA:11.5 (VRD)

Efficiency (%) 86 Power factor 0.99
Protection class IP21S Cooling AF
Net weight (kg) 13.2 Dimensions (mm) 580 x 160 x 330
Standards

EN60974-1:2021(LVD)

EN60974-10:2021(EMC) 2019/125/EC(EER)







Specifications

MPN
9011H
Input power voltage (V)
110/230V
Brand
Stealth
Condition
New
Product Code
9111H +9827H
