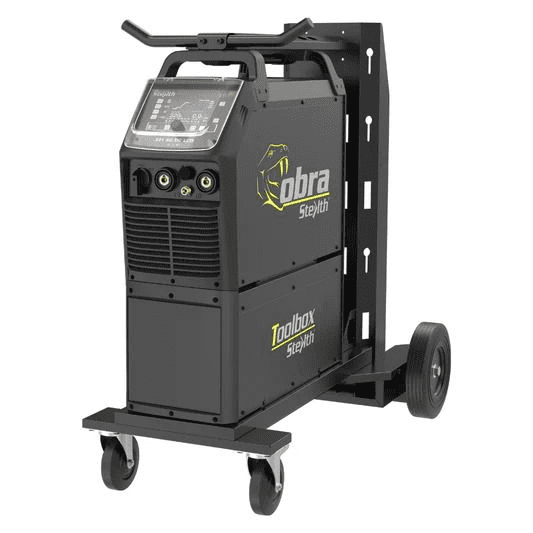

Cobra By Stealth 321 LCD AC/DC Pulse TIG Welder-Air Cooled
Cobra By Stealth 321 LCD AC/DC Pulse TIG Welder-Air Cooled
Cobra By Stealth 321 LCD AC/DC Pulse TIG Welder-Air Cooled
Cobra By Stealth 321 LCD AC/DC Pulse TIG Welder-Air Cooled

Product Description

The Cobra by Stealth 321 air cooled TIG welder is a three Phase rugged manufacture TIG welder. Generator friendly, Full digital control panel, Choice of pulse frequency, Welds all forms of steels – including aluminium.

Increase the efficiency of your welding with the Cobra by Stealth 321 LCD AC/DC TIG Welding Machine. This 3-phase machine utilizes advanced ac/dc technology and features 3 welding modes (TIG HF, TIG LIFT, MMA) for versatile use. Its built-in air cooler and trolley mount provide convenience and ease of use.

The Cobra by Stealth 321 LCD AC/DC TIG Welding Machine comes with a tool box mounted on a sturdy trolley, allowing for effortless mobility and convenient manoeuvring around the workspace.

Machine comes with Accessory Kit No. 9827H (WP26-4m torch, gas adaptor, electrode holder and acc)

Features

  • IGBT module converter technology
  • Phase loss protection
  • Lift TIG and HF start modes
  • Adjustable ARC force
  • High performance on ultra thin surfaces
  • 2T/4T spot trigger control
  • 4.3" LCD display
  • Temperature, voltage and current sensors
  • Diesel generator friendly
  • AC balance control
  • Up/down button remote control torch
  • Roller wheel amps on torch
  • 5 year guarantee

Technical Data

Input power voltage 400V 3ph 400V 3ph 400V 3ph
TIG MMA
Effective input current - AC (A) 15 16
Effective input current - DC (A) 16 21
Maximum kVA 13
Input voltage frequency (Hz) 50
No load voltage (V) 73.8 72.4
Current adjustment range (A) 10-320
Duty cycle (A) (40 degrees 10mins) 60% @ 320
100% @ 250
Arc - Starting HF/LIFT
Protection class IP23
Insulation class H
Slope out (S) 0-10
Clean width (%) 5-95
Pre - gas time adjustment range (S) 0.1-2
Post - gas time adjustment range (S) 0-10
Clearance effect (%) 5-95
Efficiency (%) +- 85
Overall dimensions (mm) 570 x 240 x 385
Weight (kg) 25
Accessories included 3m Argon hose 3m earth lead Amphenol plug

Specifications

Input power voltage (V)
400V
Brand
Stealth
Condition
New
Product Code
9112H-AC+9827H

Delivery & Returns

UK Delivery

Postage and packing to mainland UK is free on all orders over £60.00 (exc VAT. All orders up to £60.00 (exc VAT) are £5.75 plus VAT.

Click and collect is now available for PO and SO postcodes.

Outside of the UK

For delivery to an address outside the UK please call us on 023 92 295612 or email us at sales@migtigarc.co.uk and we will advise.

Cobra By Stealth 321 LCD AC/DC Pulse TIG Welder-Air Cooled

Product Code 9112H-AC+9827H

Key Features

Multi AC wave form

Full digital control

HF + pulse

5 Year warranty

Up to 320 amps
