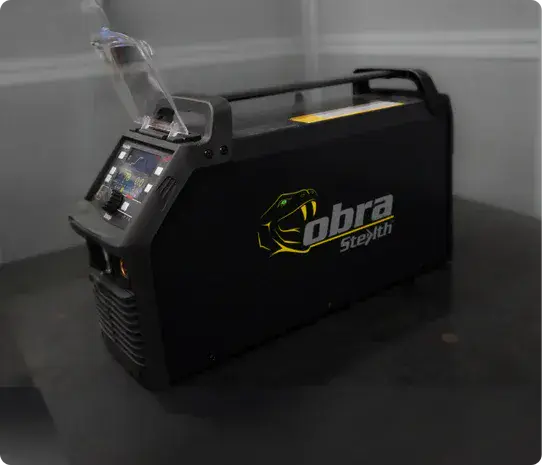

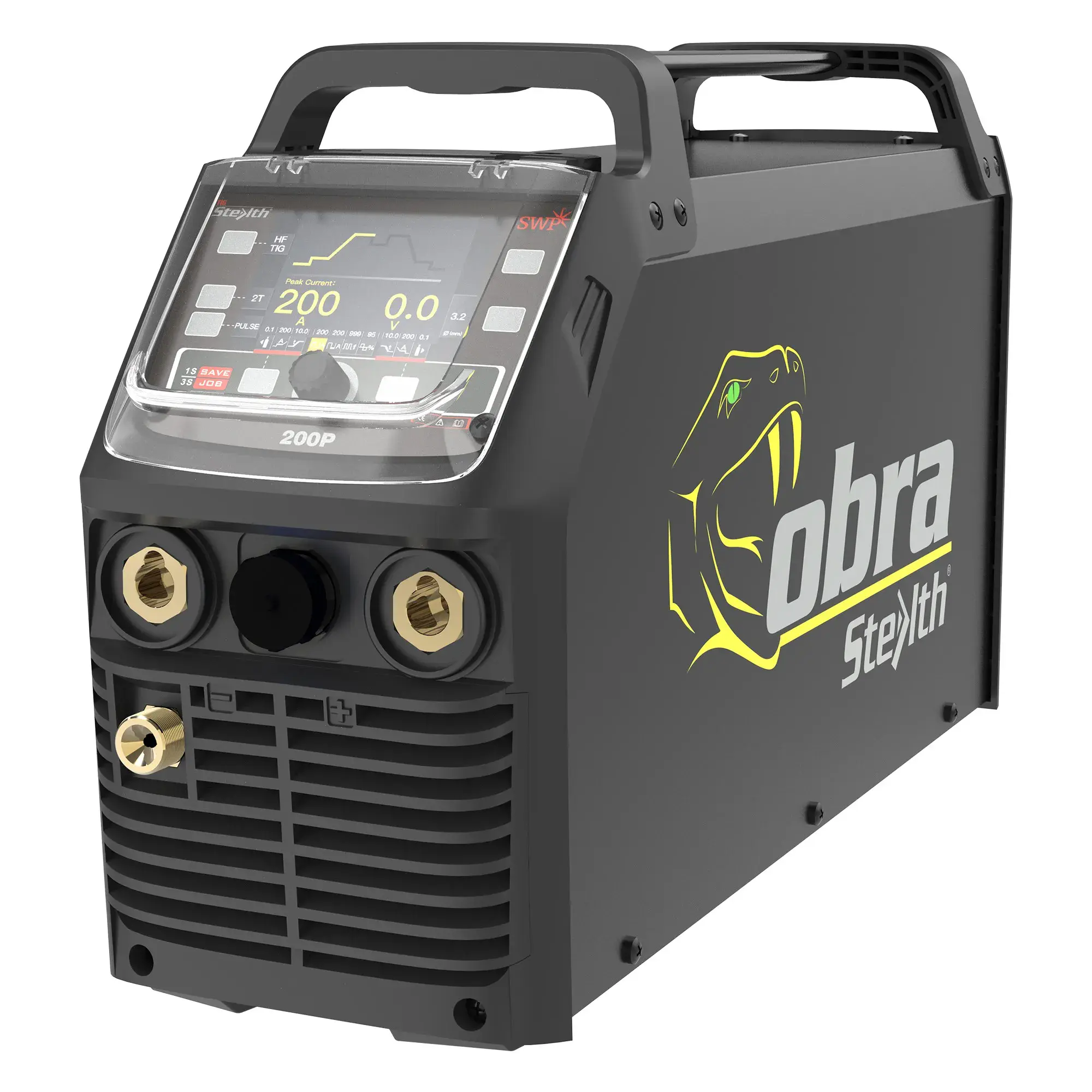

The Cobra by Stealth TIG 200P LCD TIG Welder is a high-performance DC output inverter welding machine designed for professional fabricators, automotive welders, and workshop use. Featuring advanced IGBT inverter technology and an intuitive LCD control panel, this versatile TIG welder delivers precise control for welding stainless steel, mild steel, copper, and aluminium (with optional accessories). With adjustable pulse TIG functions, 2T/4T torch control, and a smooth arc start, it ensures superior weld quality and consistency on both thin and thick materials.
Lightweight and portable, the Cobra TIG 200P LCD is ideal for site work as well as workshop projects. Its digital display allows easy setup of welding parameters, making it user-friendly for beginners while offering advanced features for professionals. Built with robust components for long service life, it provides reliability, efficiency, and outstanding value.
The TIG 200P is the latest technology DC output TIG welder capable of of welding steel and stainless steels only. This versatile machine will TIG weld from just 3 amps whilst offering a class leading duty cycle rating of 60%.
This machine comes complete with Accessory Kit No. 9827H (WP26-12SZ TIG torch, earth lead, gas hose and fittings)
Features
- Multi voltage
- DC TIG (High Frequency & Lift Start) / MMA (Stick)
- Pulse TIG function: Adjustable pulse frequency for improved heat control on thin materials
- Pulse frequency: Adjusted in the range of 0.1 - 999Hz

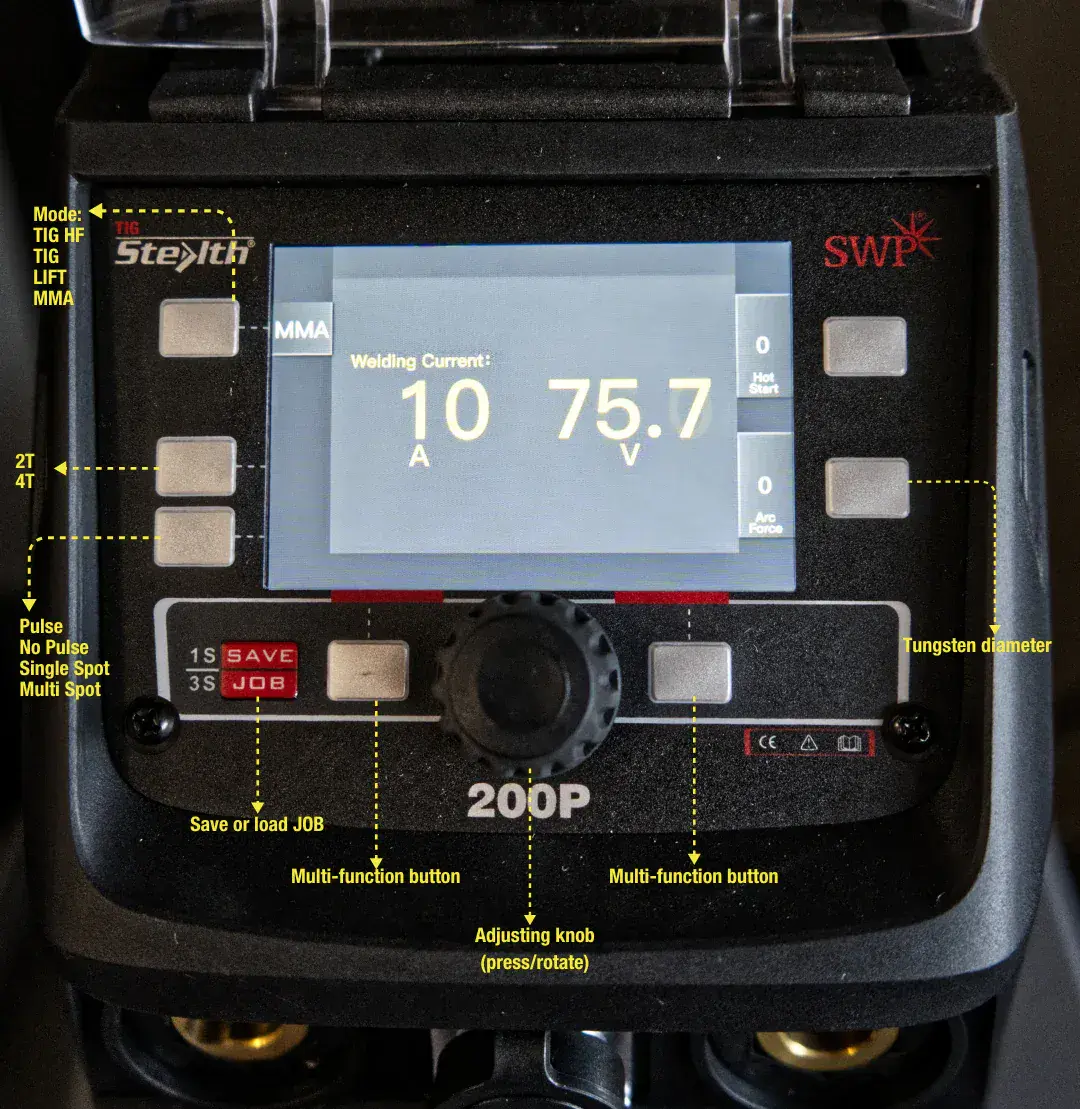

- Control Panel: LCD digital display for precise parameter setting and repeatable welds
- TIG welds from just 3 amps
- Torch Control: 2T/4T trigger modes for flexible welding operation
- Job memory
- Generator friendly
- Power factor correction
- 5 Year guarantee
Key Benefits
-
Delivers smooth, stable arcs for stainless steel, mild steel, copper, and thin-section metals
-
User-friendly LCD interface makes parameter adjustments quick and accurate
-
Portable and robust, ideal for fabrication shops, garages, and site welding tasks
-
Dual function TIG & MMA welding for greater versatility in one machine
-
Energy-efficient design reduces running costs while maintaining professional weld quality

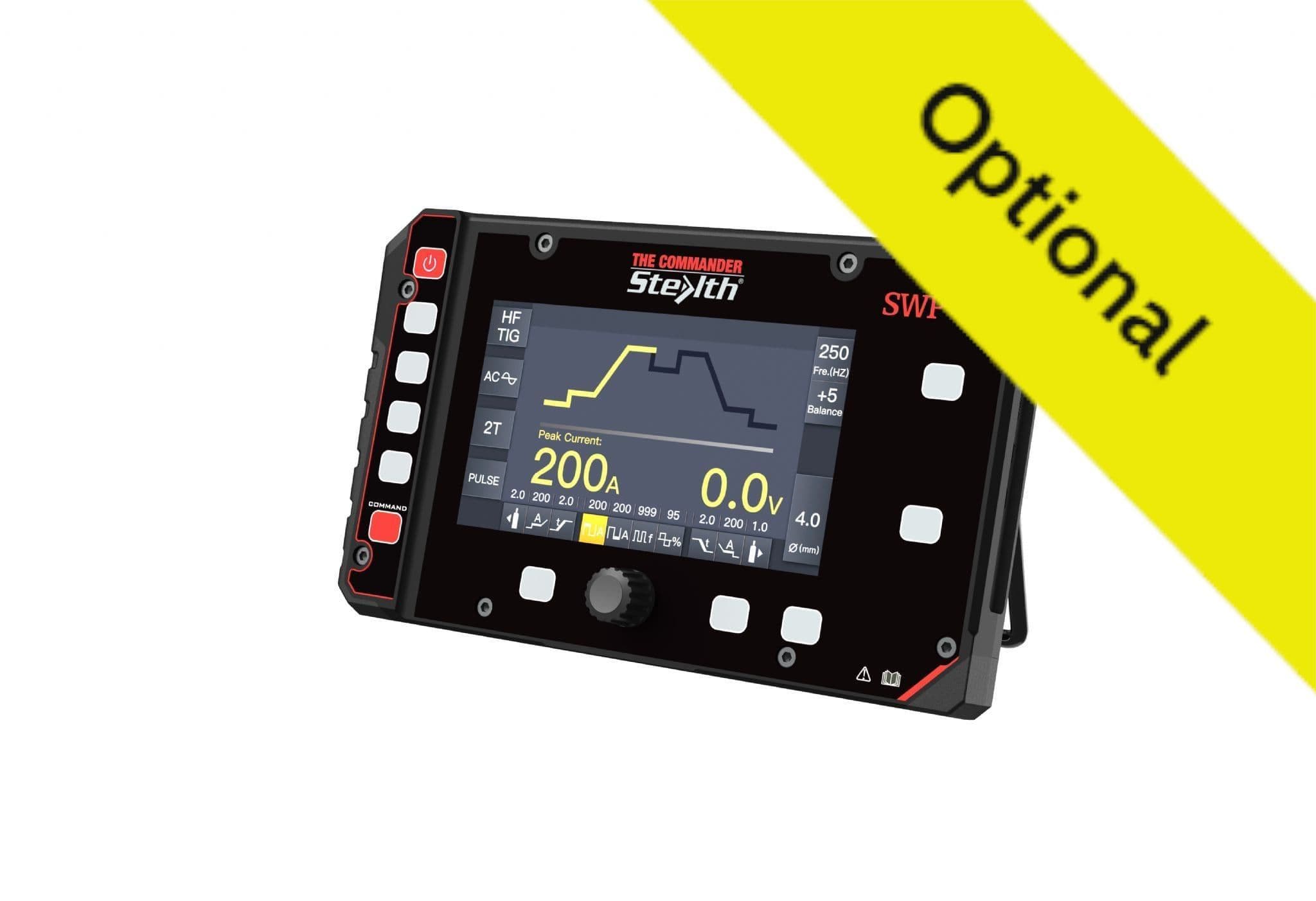

Also shown is the optional Cobra Commander, which is a full colour wireless remote control with a 20 meter range, providing the operator with full control over TIG power sources.
| Input supply voltage |
90-275 |
Power frequency (Hz) |
50/60 |
| Input voltage (V) |
1-110
1-230
|
Effective current (A) |
110V TIG DC :29.6
110V MMA DC:24.2
230V TIG DC:15.1
230V MMA DC: 18.4
|
| Rated input current |
110V TIG DC:31.2
110V MMA DC: 38.3
230V TIG DC: 19.5
230V MMA DC: 29.1
|
Rated input power (KW) |
110V TIG DC:3.4
110V MMA DC:4.2
230V TIG DC: 4.5
230V MMA DC: 6.7
|
| Duty cycle 110V TIG (A) (40°C to 10 min) |
60% @ 160A
100% @ 125A
|
Duty cycle 110V MMA (A) (40° to 10 min) |
30% @ 130A
100% @ 100A
|
| Duty cycle 230V TIG (A) (40°C to 10 min) |
60% @ 200A
100% @ 155A
|
Duty cycle 230V MMA (A) (40°C to 10 min) |
40% @ 200A
60% @ 165A
100% @ 130A
|
| Welding current range (A) |
110V TIG DC:3-160
110V MMA:10-130
230V TIG DC: 3-200
230V MMA:10-200
|
No load voltage |
110V TIG:67
110V MMA: 67
230V TIG:67
230V MMA: 67
|
| Efficiency (%) |
85.3 |
Power factor |
0.99 |
| Protection class |
IP21S |
Cooling |
AF |
| Net weight (kg) |
9 |
Dimensions (mm) |
580 x 160 x 330 |
| Standards |
EN60974-1:2021(LVD)
|
EN60974-10:2021(EMC) |
2019/125/EC(EER) |
