Jasic JT-315MWD AC/DC Digital Pulse TIG Welder
Jasic JT-315MWD AC/DC Digital Pulse TIG Welder

Product Description

The Jasic TIG 315P AC/DC is a technologically advanced three phase TIG welder suitable for professional production work. The 315P is a multi-function welder with AC TIG welding (square wave, triangular wave and sine wave), AC pulsed TIG welding, DC TIG welding, DC pulsed TIG welding, AC/DC hybrid TIG welding and coated electrode MMA welding (DC,AC).

The excellent welding performance and function rich technology make it a great choice for the professional welder with high quality demands.

Standard functions/features

  • TIG pulse AC/DC with Digital control
  • 43 KHz inverter frequency and strong shock resistance IGBT
  • Peak current control,2T/4T
  • Pre-post flow time, up/down slope
  • Pulse adjustment
  • Pulse frequency, pulse duty, arc force, cleaning width
  • Multi wave options on AC
  • AC function for aluminium and aluminium alloys
  • DC TIG function for carbon steel
  • Program memory storage up to 50 sets of data
  • HF and lift TIG
  • Intelligent fan and cooler control
  • VRD function
  • AVR generator friendly

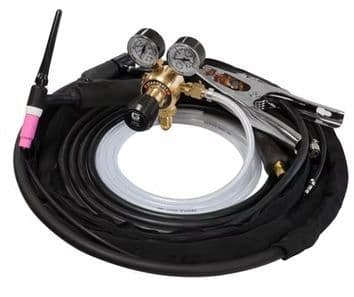

Supplied with TIG torch, adaptor, gas regulator, work return and clamp.

5 YEAR WARRANTY

Technical Data

  • Input voltage: AC 400V 50/60 Hz
  • Leff (A): 12.4
  • Input power (kVA) :14
  • Current range (A) MMA 10- 270,TIG 10-315
  • Duty cycle @ 40 degrees C:MMA 270A @ 30% TIG 315A @ 30%
  • No load voltage (V): 73 (12.4V VRD)
  • Protection/insulation class:PS21S/F
  • Dimensions: (L x W x H mms) : 566 x 224 x405
  • Weight (Kg): 25.5

Call us for a great deal ! 02392 295612

Specifications

Input power voltage (V)
230V
Brand
JASIC
Condition
New
Product Code
JT-315MWD

Delivery & Returns

UK Delivery

Postage and packing to mainland UK is free on all orders over £60.00 (exc VAT. All orders up to £60.00 (exc VAT) are £5.75 plus VAT.

Click and collect is now available for PO and SO postcodes.

Outside of the UK

For delivery to an address outside the UK please call us on 023 92 295612 or email us at sales@migtigarc.co.uk and we will advise.

Jasic JT-315MWD AC/DC Digital Pulse TIG Welder

Product Code JT-315MWD

Key Features

Pulse

Multi wave functions AC

VRD function

Memory storage

MMA
