Product Description

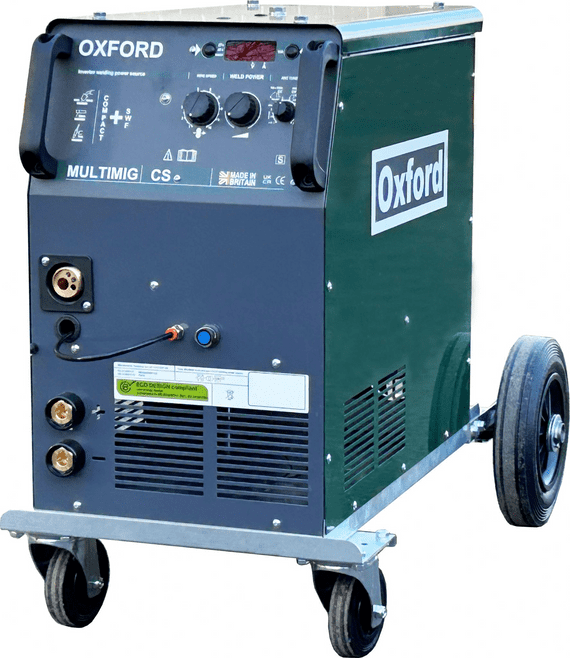

Oxford MULTIMIG 271CS MIG welder is a British made 230v heavy duty inverter based power source, simple to use, rugged, reliable and offer better welding performance than older transformer MIG welders. Faster welding with less down time, less cleaning up and lower power consumption. Welds steel, stainless, Duplex, hardox, aluminium and alloys, whatever metal you want, these are a real joy to use. Oxford welding machines have been made in the UK for over 60 years. They are known for simple rugged build quality, high reliability, long life span and excellent welding performance. We take pride in hand building every machine using the best quality components. Our Oxford MULTIMIG inverter range are built exactly the same way. These models provide welding performance on another level and offer you more than similar products on the market today.

Supplied with a free MB25-3m torch and reg.

Operators Manual

Every Oxford welding machine is offered with the following guarantees:
2 year warranty all items - except torch and regulator.
20 year minimum guarantee of spares availability


Please call for a great deal !

Features

  • Compact MIG welder that can also take a separate wire feeder
  • Can accept a spool guns for better aluminium welding
  • MMA Arc and DC TIG
  • Can accept a TIG torch for DC welding applications
  • Infinitely variable weld power from 20A to 270A with precision to 1A and 0.1V
  • Digital display shows set and precise values prior to welding
  • Super smooth low spatter MIG welding, instant arc starts with no popping
  • Unique ARC TUNE control allows full control over welding characteristics from CV to CC
  • Unique ARC TUNE for variable inductance, fine tune the arc precisely, dial out spatter
  • Reversible polarity ,2T and 4T function, adjustable burnback, adjustable gas post flow
  • Auto compensation for extension cables up to 100M or poor mains supply
  • Generator friendly with built in surge protection
  • Low standby power consumption of just 12-20W
  • High duty cycle
  • Cooling chamber keeps dirt away from electronics
  • Low weight
  • Industrial machine built to to work hard for 25 years +
  • Quiet running

MODEL POWER SUPPLY DUTY CYCLE
MULTIMIG 271CS 230V 1PH 270A@35% 205A @60%
MULTIMIG 331CS 230V 1PH 330A@40% 260A @60%
MULTIMIG 411CS 230V 1PH 410A@45% 355A @60%
MULTIMIG 273CS 400V 3PH 270A@35% 205A @60%
MULTIMIG 333CS 400V 3PH 330A@40% 260A @60%
MULTIMIG 413CS 400V 3PH 410A@45% 355A @60%
MULTIMIG 513CS 400V 3PH 510A@45% 450A @60%
Dimensions mm inc wheels 460W x 650H x 840L 460W x 680H x 840L for 411/413 & 513 models

Specifications

Input power voltage (V)
230V
Brand
Oxford
Condition
New
Product Code
MULTIMIG 271CS

Delivery & Returns

UK Delivery

Postage and packing to mainland UK is free on all orders over £60.00 (exc VAT. All orders up to £60.00 (exc VAT) are £5.75 plus VAT.

Click and collect is now available for PO and SO postcodes.

Outside of the UK

For delivery to an address outside the UK please call us on 023 92 295612 or email us at sales@migtigarc.co.uk and we will advise.

Oxford MULTIMIG 271CS MIG Welder - 230V

Product Code MULTIMIG 271CS

Key Features

Variable  voltage output

Heavy duty industrial inverter

Less power consumption

20 - 270 amps
