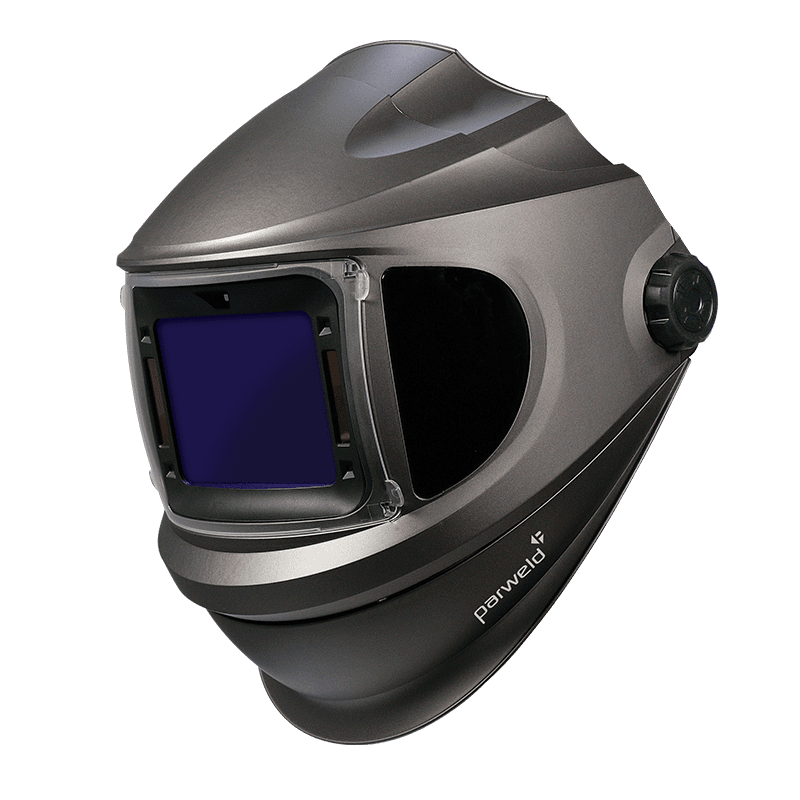

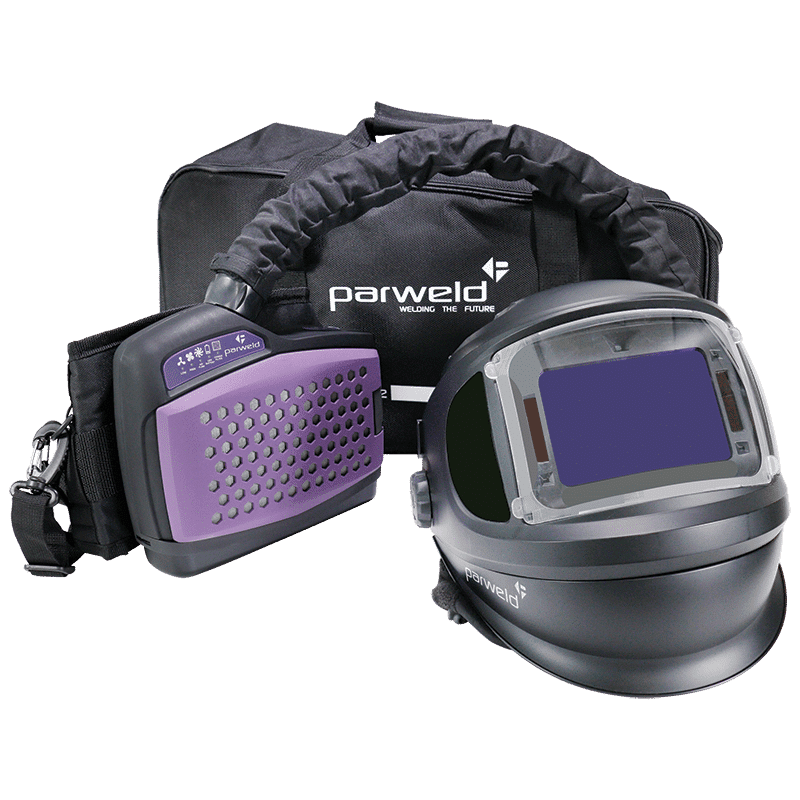

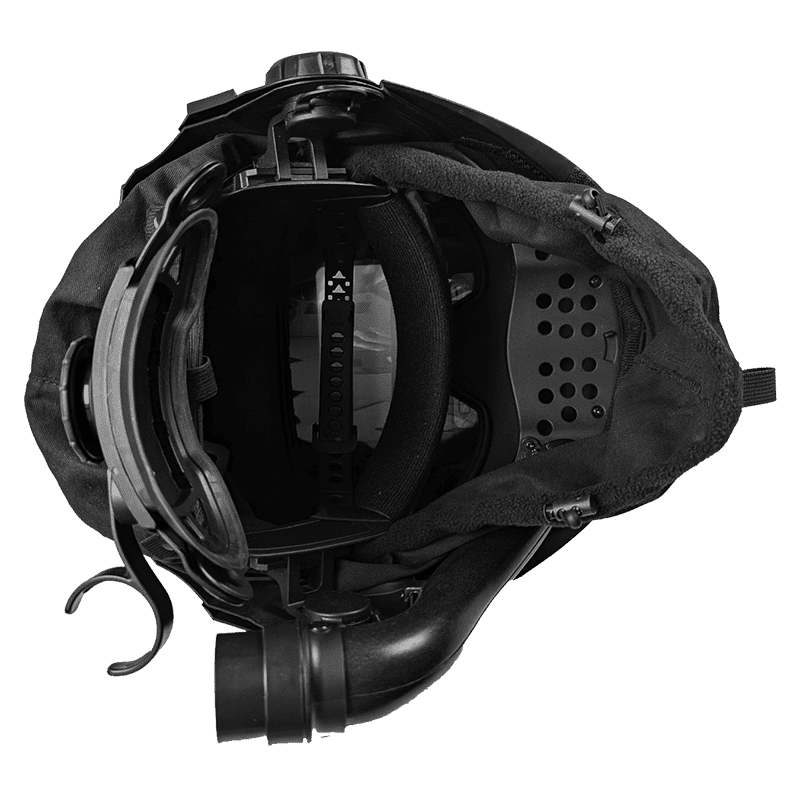

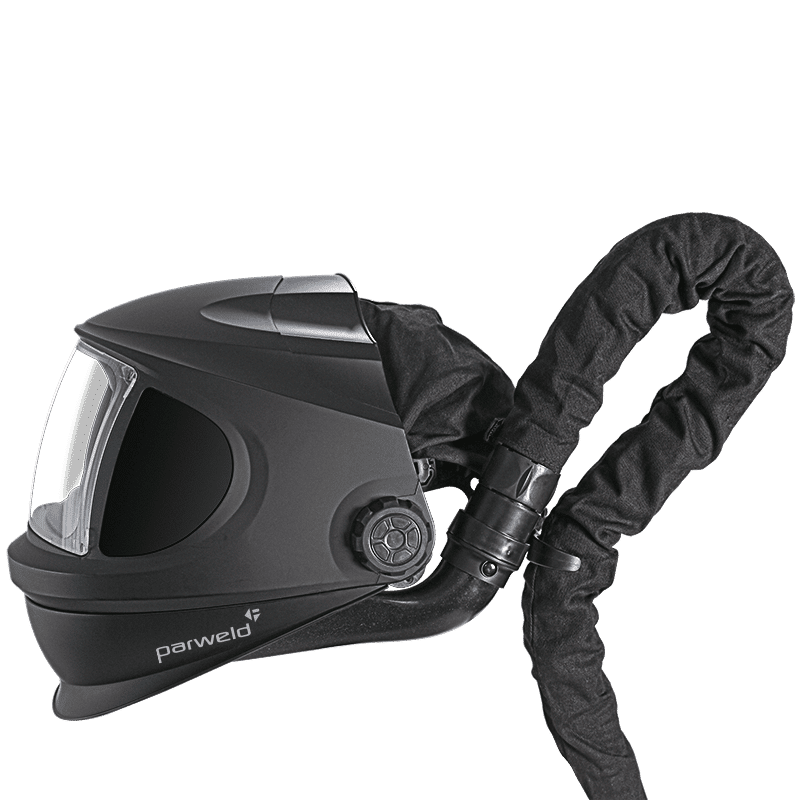

The Parweld XR943A Air Fed flip front welding helmet supplies clean air to weld in fume environments. The electronic system for controlling the airflow monitors the blower in order to ensure a constant flow of min 170nl/min or 220nl/min. The operating time with a fully charged battery depends on the filter state but run time on the low setting is normally more than 11 hours and 9 hours on the high setting. The XR943A has enhanced warning signals, optical and audible alarms for low power, clogged filter and reduced airflow. The welding helmet features a multi adjustable headband with enhanced supports to spread the load evenly on the wearers head, vibration warning for low airflow.

The unit is lightweight at less than 1.1 kg and includes easy-to-operate controls. It comes supplied with an A1 P3 main filter, an activated carbon pre-filter, and a metal spark arrester for comprehensive filtration. Kit Includes the XR1020 Flip-Up Front Welding and Grinding Helmet from Parweld, equipped with a wide-view grinding visor, an LCD display, and a True Colour Auto-Darkening Filter (ADF) that offers exceptional clarity, rated at 1/1/1/1 in accordance with EN 379. The helmet contains a gradual lightening feature helps reduce eye strain, while its Light Shade DIN 3 ensures improved pre-welding visibility. The Variable Shade Control (DIN 4-13) allows for precise adjustment, enhancing comfort during various welding tasks. Ergonomically Balanced, the headgear features multiple adjustable rake positions, providing a secure fit. It includes several modes for versatile use: Auto Shade Mode for quick settings, High-Speed Tacking Mode, as well as Weld, Grind, and Cut modes. Additionally, the helmet’s memory function allows welders to easily store and recall their preferred settings for seamless operation.

Fitted with a 'True Colour' 108mm x 74mm lens for enhanced clarity.

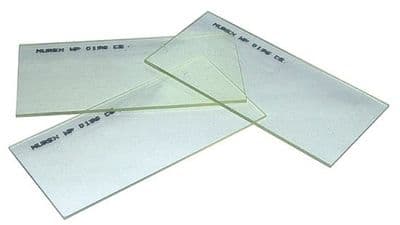

Conforms to: EN12941: 1998/A 1:2004/A2:2008 TH3P. Supplied with spare lenses.

Key Features

• Portable and light weight

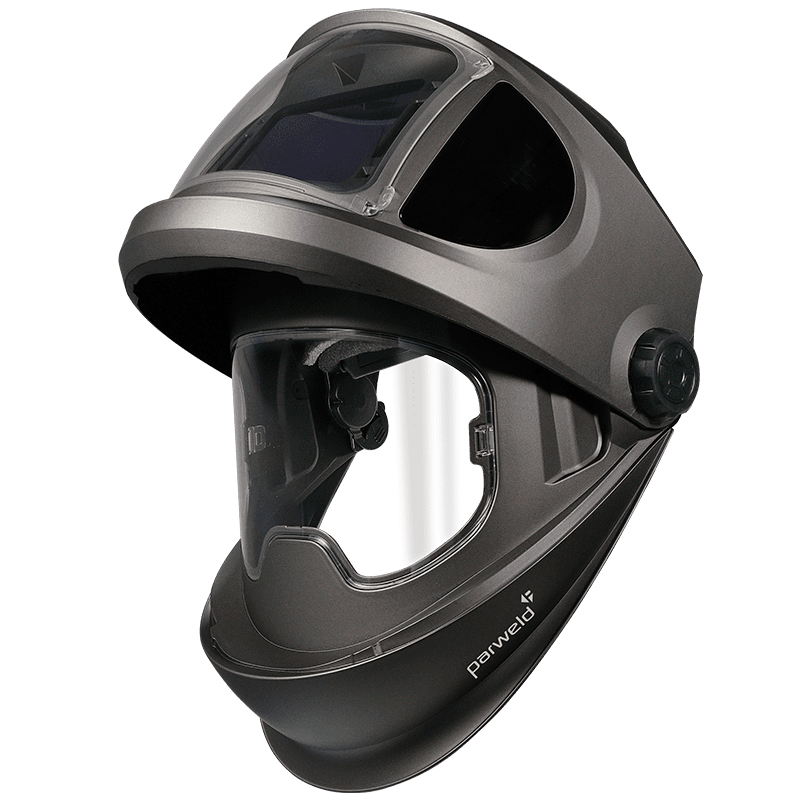

• Flip front action
• Gradual lightening
• Settings memory
• High speed tacking mode
• Protects against dust particles, solid and liquid aerosols and smoke
• Constant filtered airflow
• Lightweight li-oin removable battery
• Audible. visible and vibration warning alarms for low power, low airflow and blocked filter
• Extra large viewing area - 108 x 74mm
• True colour lens - exceptional clarity
• 4 Arc sensors
• All external controls
• Variable shade control
• Dual solar cells
• UV/IR protection
• ADF self testing
• Conforms to the latest standards
• Fully automatic lens
• Light state: Din 3
• Dark state: Din 4-8/9 to Din 9-13 variable
• Dark to light 0.1 to 1.0 seconds variable

Technical data
