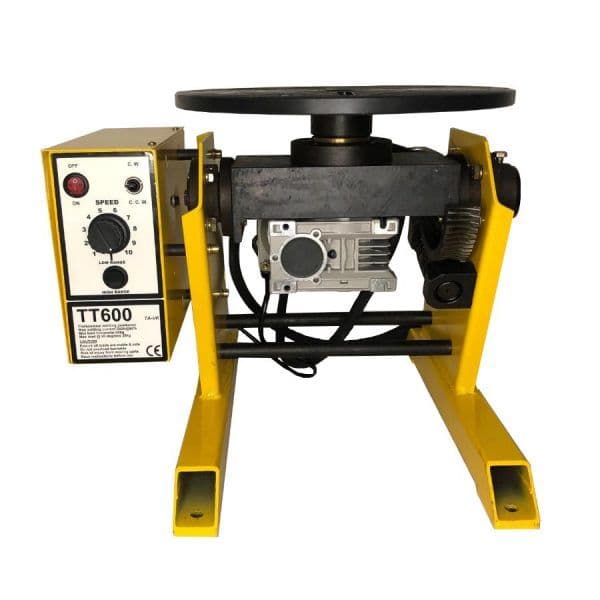

The TT600 Welding Turntable is the ideal solution for producing a circular weld, fast and accurately, or for accurately & rapidly positioning the work piece for welding etc. Supplied with stop-start foot pedal, a variable foot pedal is available as an option.

The 345mm turntable can be positioned to any angle between horizontal & 90 degrees, a hand wheel which drives a worm gear is fitted at the rear to adjust this angle, a lock off device is fitted to prevent the table being accidentally moved or knocked off angle. The table is machined with six slots 90 x 12mm for mounting the works or jigs. The table is also scored every 30mm with a circle assist in accurate setting up of the job. Under the table is a substantial brass bush arrangement for the welding earth return and we supply a 2m welding lead attached to this.

As standard the TT600 & TT1000 are supplied with a on/off foot switch to stop & start the rotation. On the front panel there is a switch to select clockwise or anti-clockwise rotation and a knob to control the speed.

Input Voltage:                           Both models 230VAC or 110V on request.

Max welding current:                 350A @ 60%    450A @ 60%

Max load horizontal:                  60KG                100KG

Max load vertical:                      25KG                 50KG

Rotation speed:                         0.5 – 12 rpm      0.5 – 15 rpm

Dimensions:                              L= 430mm W=430mm,  H=380mm    (H=420 - TT1000)

Options

Remote socket for stop start to interface with a robot etc
Control to give automatic start and stop of rotation with the welding current.
Foot pedal to give stop start of the rotation with variable speed control on the pedal and start of the power source as well if required.
Timer control & an output to drive the power source, so only one control signal is needed to start the whole process.
Please enquire for further possibilities.
